HIGH-SPEED TILLAGE USA

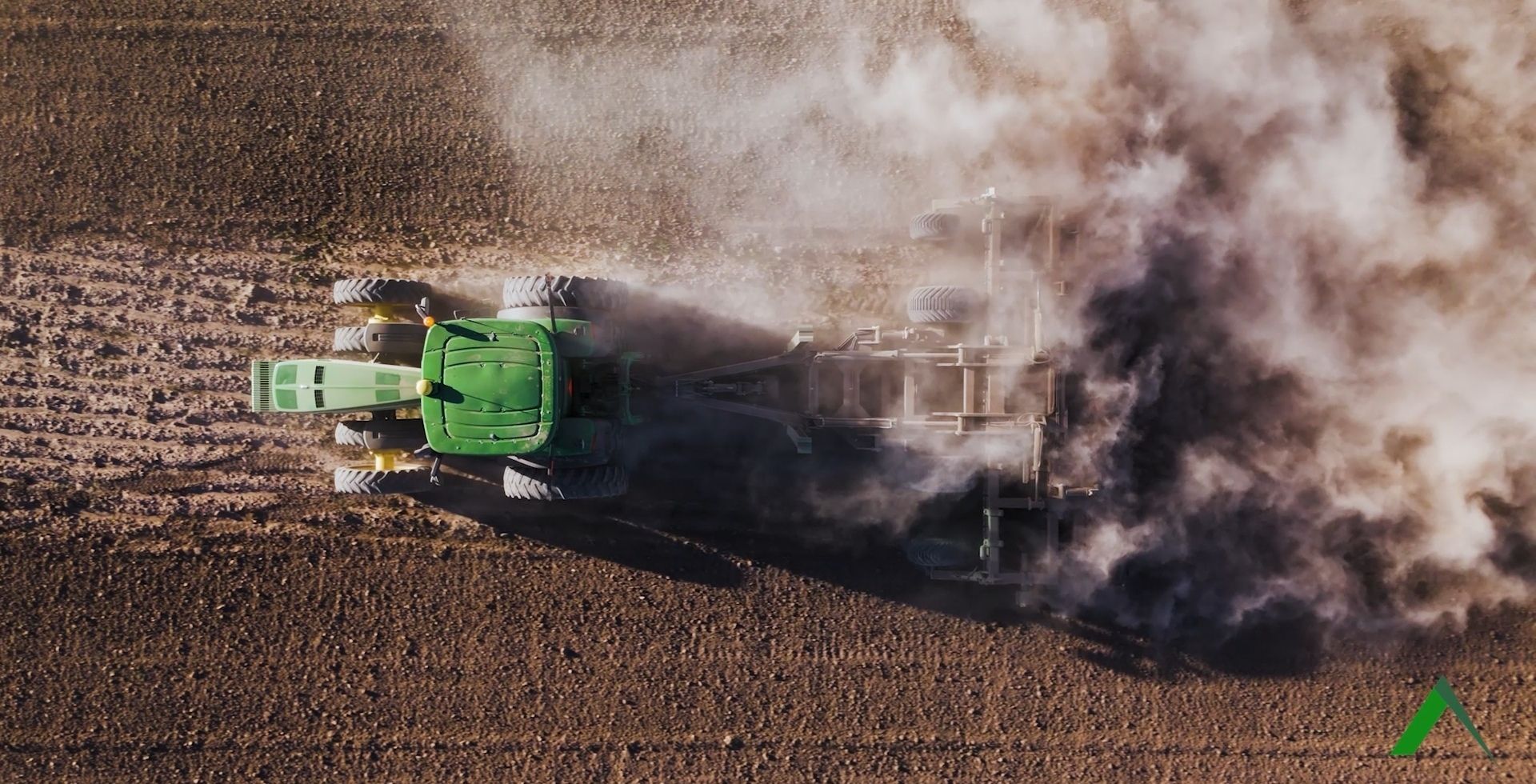

APEX Hyperdisc T Series working a field behind a tractor at speed, heavy dust

APEX Hyperdisc · Authorized US dealer

Twice the speed. Half the passes.

Get the field done. Get your days back.

The full APEX Hyperdisc range. Thirteen models, three-point and pull-type, covering 12 to 58 acres per hour on tractors from 120 to 710 horsepower.

Working speed
8 to 12 mph
Output
12 to 58 ac/hr
Power
120 to 710 HP
Working depth
2 to 8 in

WHY HIGH-SPEED TILLAGE

One pass, a seedbed behind you

8 to 12 mph

Runs at 8 to 12 mph instead of the 4 to 5 mph of a conventional disc, so you cover the ground inside a shorter weather window.

One pass

Turns and shreds heavy residue, breaks clods, levels ruts and leaves a seedbed in a single trip across the field.

2 to 8 in

Depth adjusts from 2 inches to 8 inches without tools, using maintenance-free depth stops in half inch steps.

APEX Hyperdisc working dry, grassy ground at speed, throwing soil behind the discs

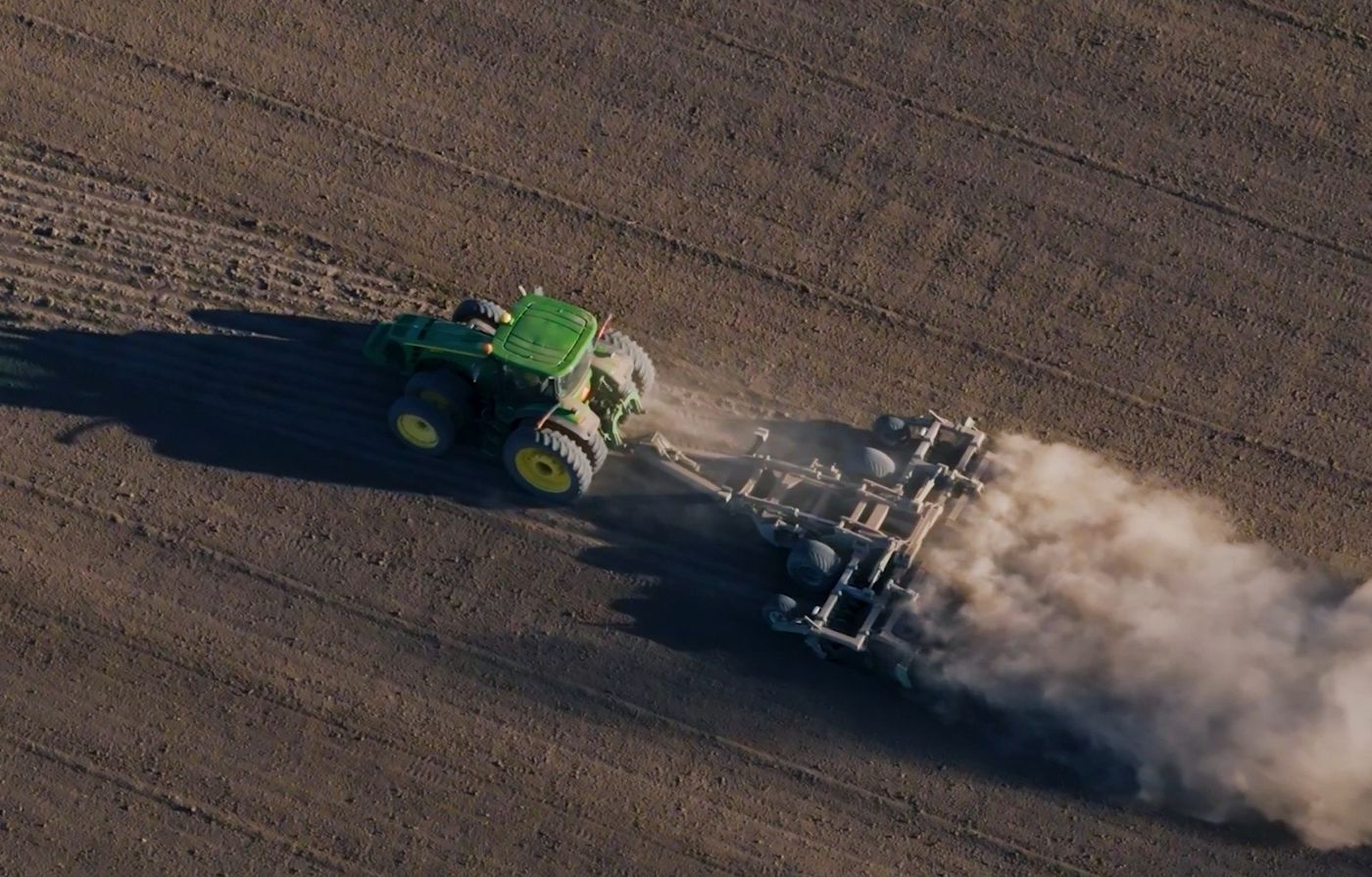

Aerial view of an APEX Hyperdisc T Series and tractor working a field with a long dust trail

One pass. Eight to twelve miles an hour.

THE RANGE

Pick the size for your tractor

Three-point mounted

C Series

For smaller and mid-size farms running a three-point hitch.

APEX Hyperdisc C series three-point disc, three-quarter view showing the disc gangs and cage roller
Width
10′8″ to 16′8″
Power
120 to 280 HP
Output
12 to 18 ac/hr
From
$21,397

Bi-fold pull-type

Free freight

H and H+ Series

For mid to large row crop operations. H+ adds rollers for finishing.

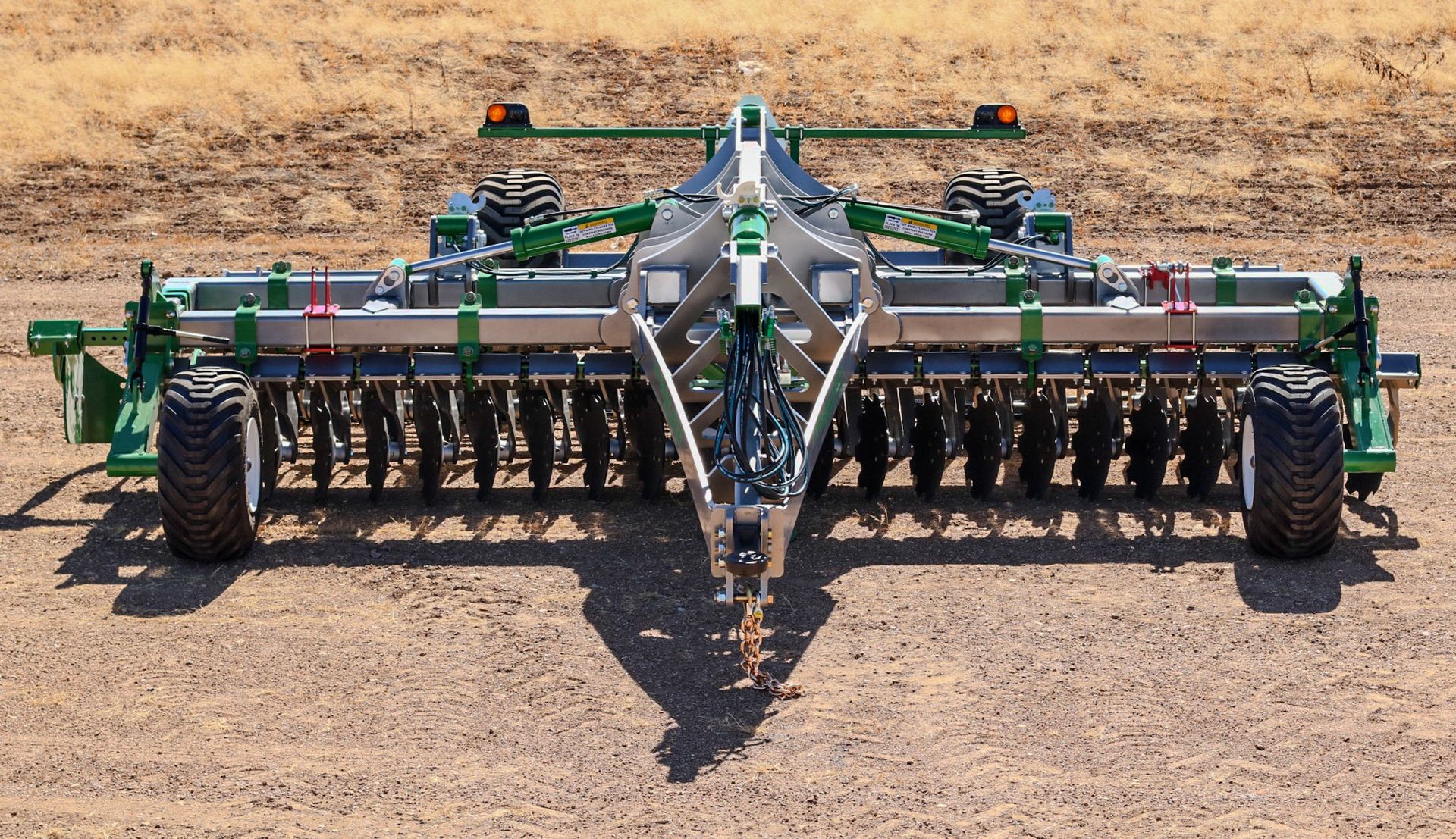

APEX Hyperdisc H Series unfolded in a field, head-on at full working width
Width
20′ to 23′4″
Power
280 to 400 HP
Output
28 to 34 ac/hr
From
$99,094

Tri-fold pull-type

Free freight

T Series

For large operations and custom operators.

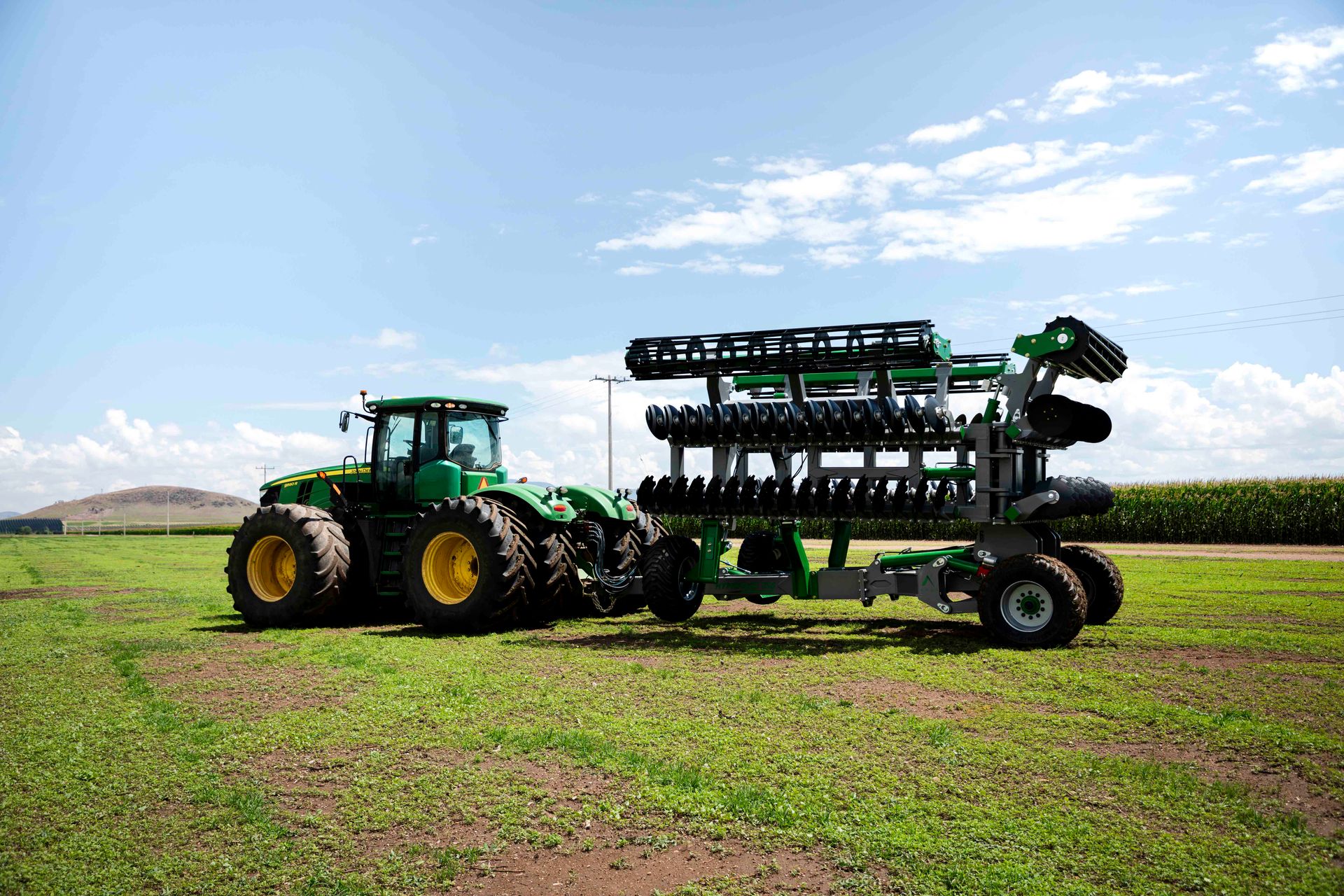

APEX Hyperdisc T Series T38 folded behind a John Deere tractor
Width
26′8″ to 41′8″
Power
390 to 710 HP
Output
37 to 58 ac/hr
From
$148,596

Prices in US dollars, before freight and taxes.

MODELS AND PRICING

Full specifications and pricing

Common to all models

Disc diameter
20 in or 22 in
Front disc angle
14°
Rear disc angle
17°
Disc spacing
10 in (5 in between rows)
Disc mounting
1 5/8 in rubber torsion rod
Disc hubs
SKF 4-bolt, maintenance-free
Working depth, 20 in
2 to 6 in
Working depth, 22 in
2 to 8 in

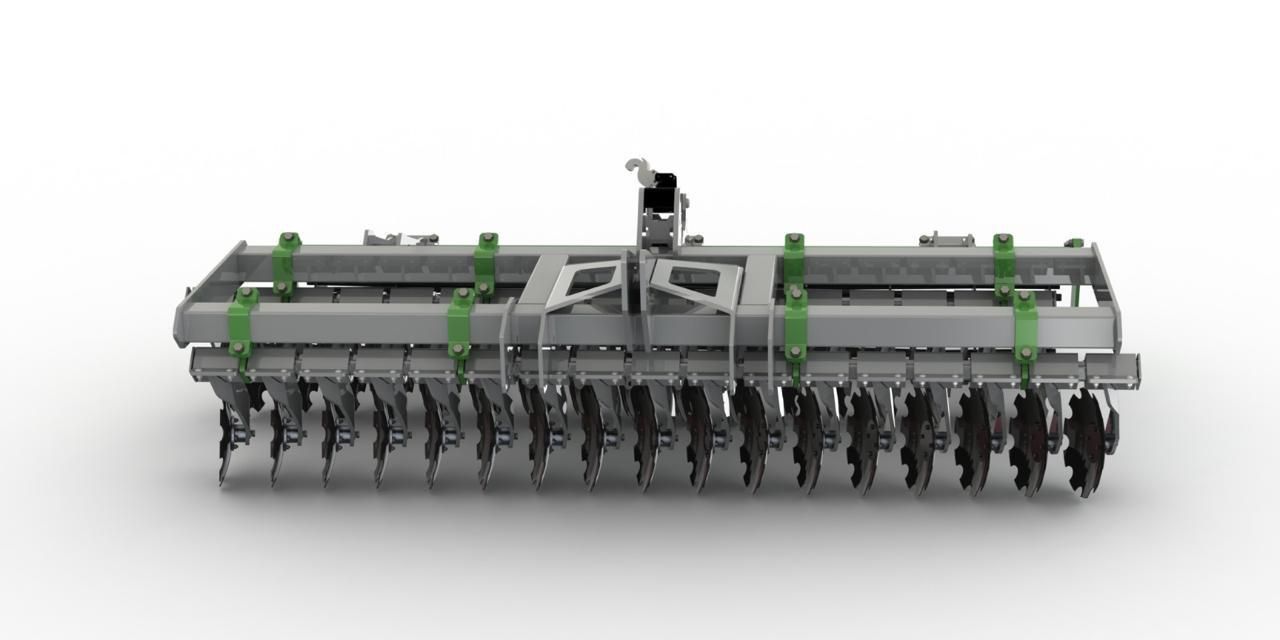

C Series

Three-point mounted

Compact, mounted Hyperdisc units from 10 ft 8 in to 16 ft 8 in. Transport length 8 ft 8 in on every model. Smaller and mid-size farms running a three-point hitch.

Hitch:
3-point, Cat 3 or 4
Transport length:
8 ft 8 in
APEX Hyperdisc C series three-point disc, three-quarter view showing the disc gangs and cage roller
APEX Hyperdisc C series cage roller and depth adjustment, low angle
APEX Hyperdisc C series from the front, both disc gangs at full width

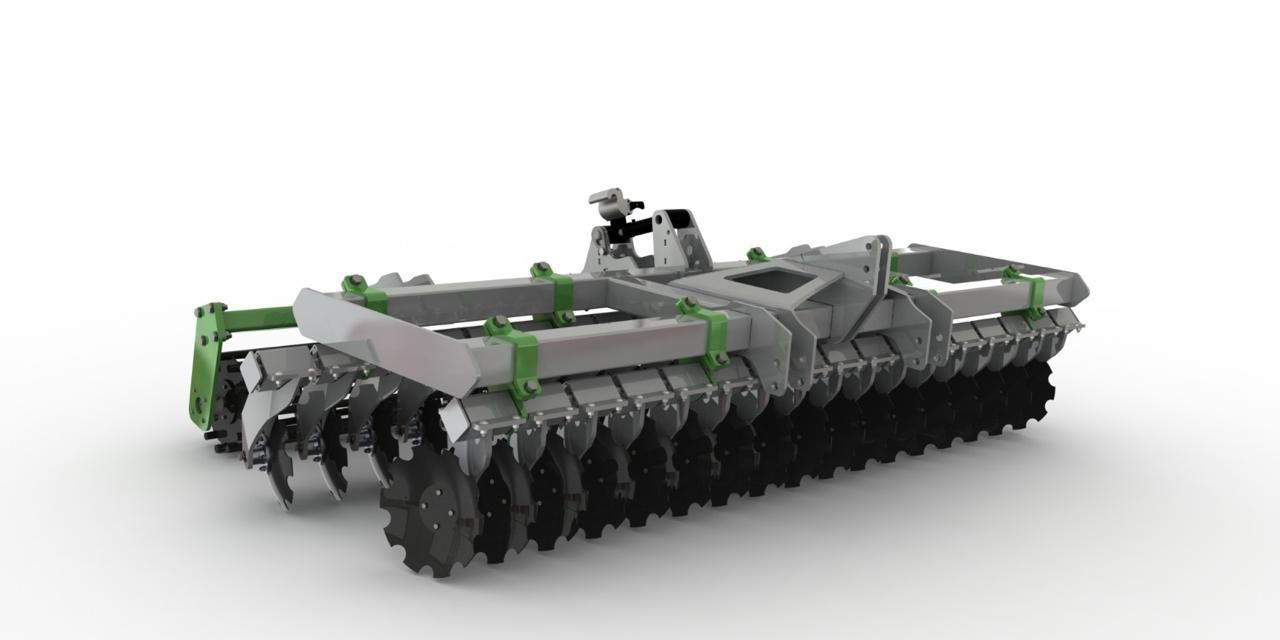

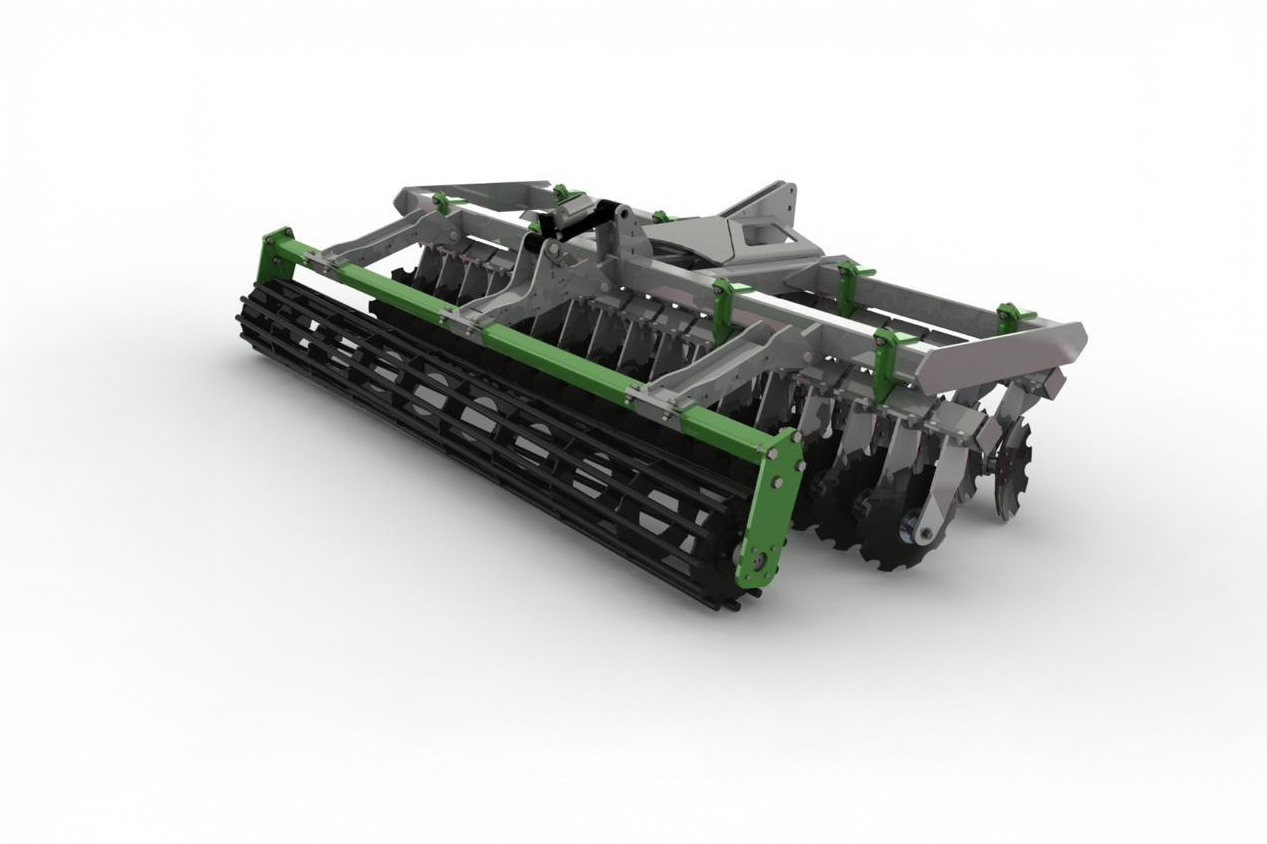

APEX Hyperdisc C Series three-point mounted disc, three-quarter view
ModelWorking widthHPAc/hr @ 12 mphDiscsTransport width22 in disc upgradePriceBuild
C1010 ft 8 in120 to 180122413 ft$811$21,397Build
C1213 ft 4 in150 to 220143015 ft 3 in$974$25,641Build
C1415 ft180 to 250163417 ft$1,137$29,920Build
C1616 ft 8 in210 to 280183819 ft$1,299$34,071Build

Swipe the table sideways to see all columns.

H Series

Bi-fold pull-type

Bi-fold pull-type units at 20 ft and 23 ft 4 in with flotation tires and manual gauge wheels. Mid to large row crop operations.

Transport tires:
500/60 R 22.5
Gauge wheel tires:
400/60 R 15.5
Gauge wheels:
Manual
APEX Hyperdisc H Series unfolded in a field, head-on at full working width

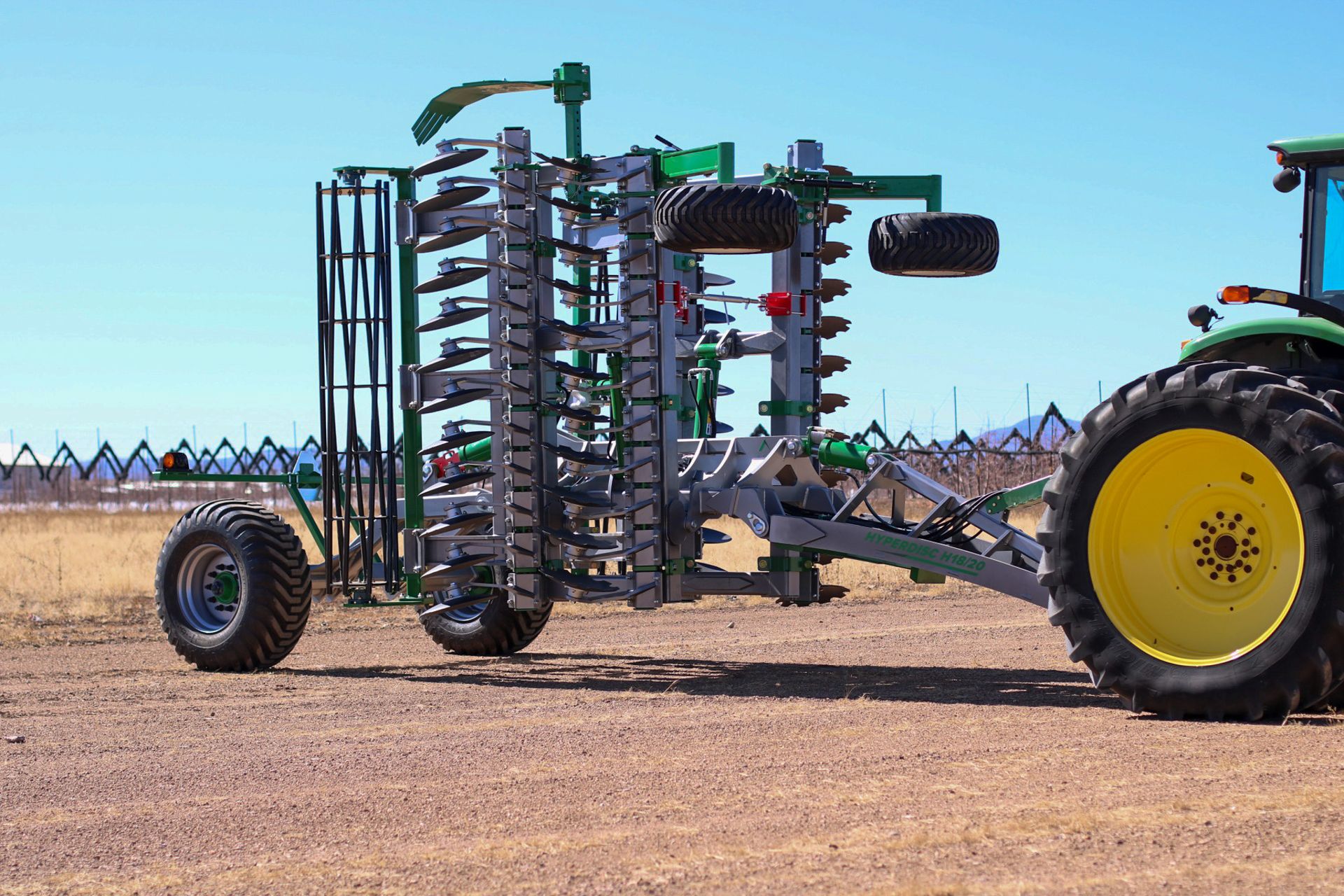

APEX Hyperdisc H Series disc gangs seen low through the tires

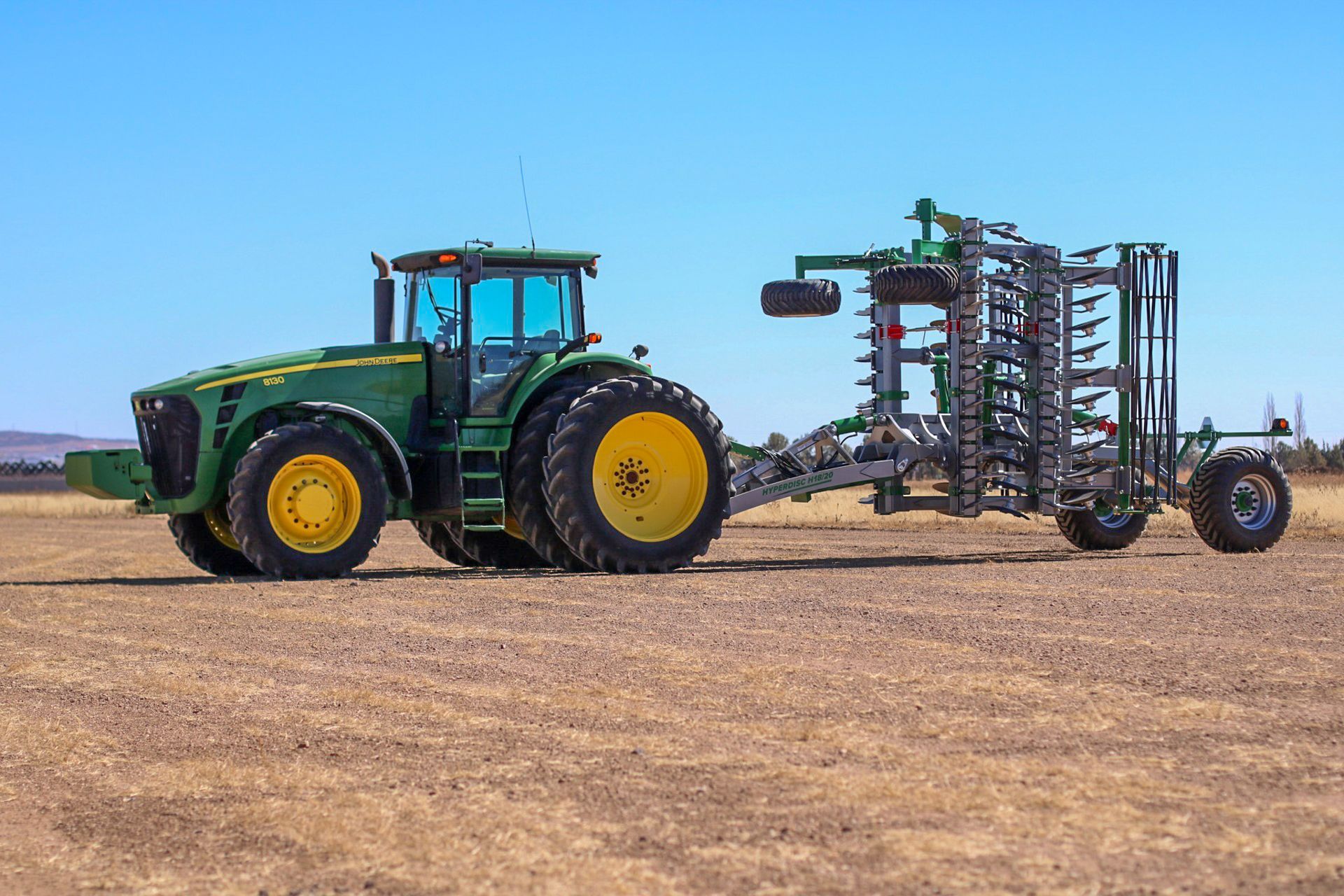

APEX Hyperdisc H Series folded behind a John Deere tractor
ModelWorking widthHPAc/hr @ 12 mphDiscs22 in disc upgradeSpring packerPriceBuild
H2020 ft280 to 3402846$1,495$7,346$99,094Build
H2423 ft 4 in340 to 4003454$1,796$8,815$104,132Build

Swipe the table sideways to see all columns.

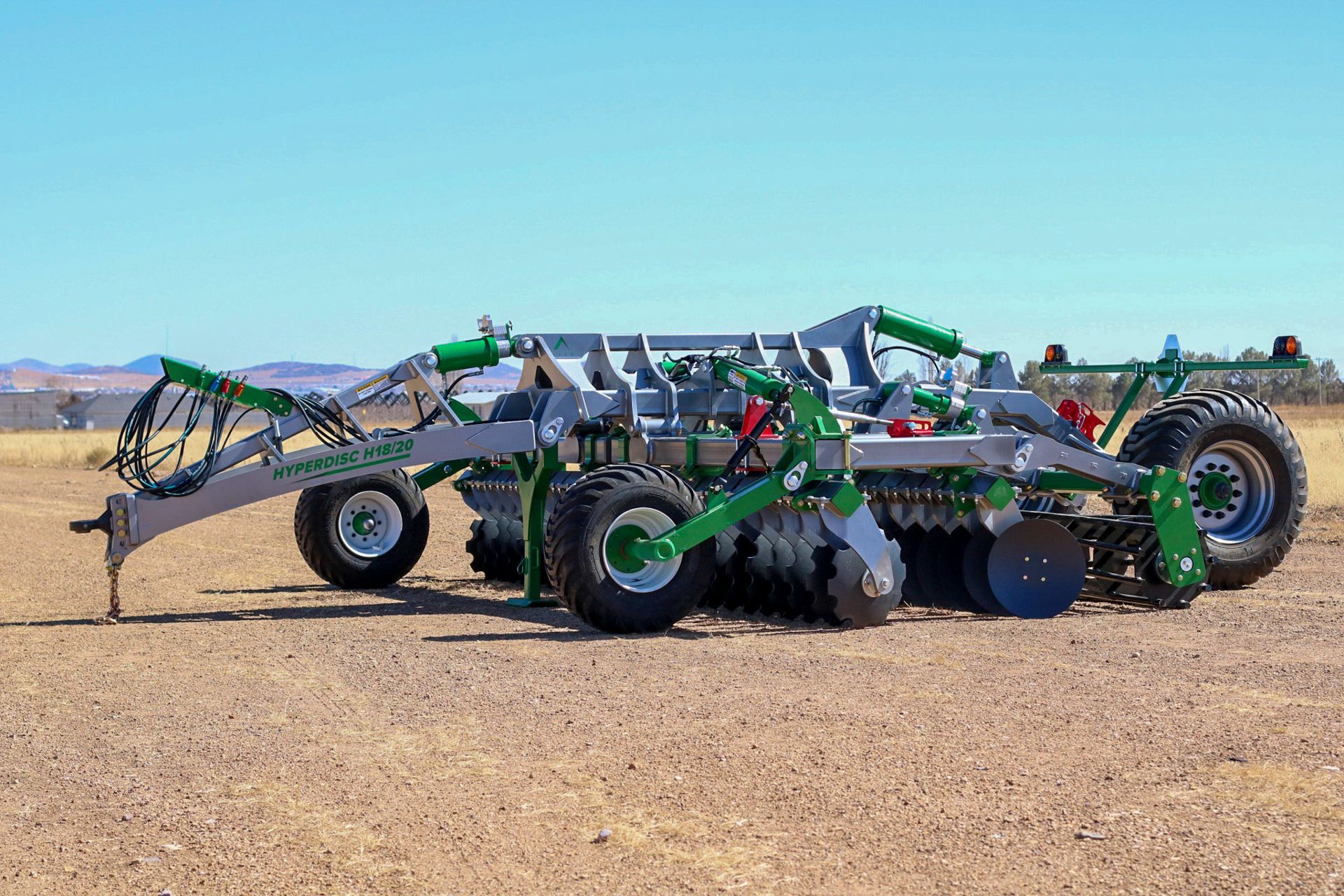

H+ Series

Bi-fold pull-type

Same widths and power as the H series, with enhanced adjustability and three sections of overlapping rollers for superior leveling and finishing. Mid to large row crop operations that want a finished seedbed.

Transport tires:
500/60 R 22.5
Gauge wheel tires:
400/60 R 15.5
Gauge wheels:
Hydraulic
Rollers:
3 overlapping sections
APEX Hyperdisc H+ with rollers, low angle
APEX Hyperdisc H+ rear three-quarter view
APEX Hyperdisc H+ behind a tractor, side view
ModelWorking widthHPAc/hr @ 12 mphDiscs22 in disc upgradeOttico LSTXSpring packerPriceBuild
H20+20 ft280 to 3402846$1,495$9,328$7,346$109,008Build
H24+23 ft 4 in340 to 4003454$1,796$11,194$8,815$114,366Build

Swipe the table sideways to see all columns.

T Series

Tri-fold pull-type

Tri-fold pull-type units from 26 ft 8 in to 41 ft 8 in with hydraulic gauge wheels. Large operations and custom operators.

Transport tires:
600/50 R 22.5
Gauge wheel tires:
500/60 R 22.5
Gauge wheels:
Hydraulic
APEX Hyperdisc T Series T38 folded behind a John Deere tractor

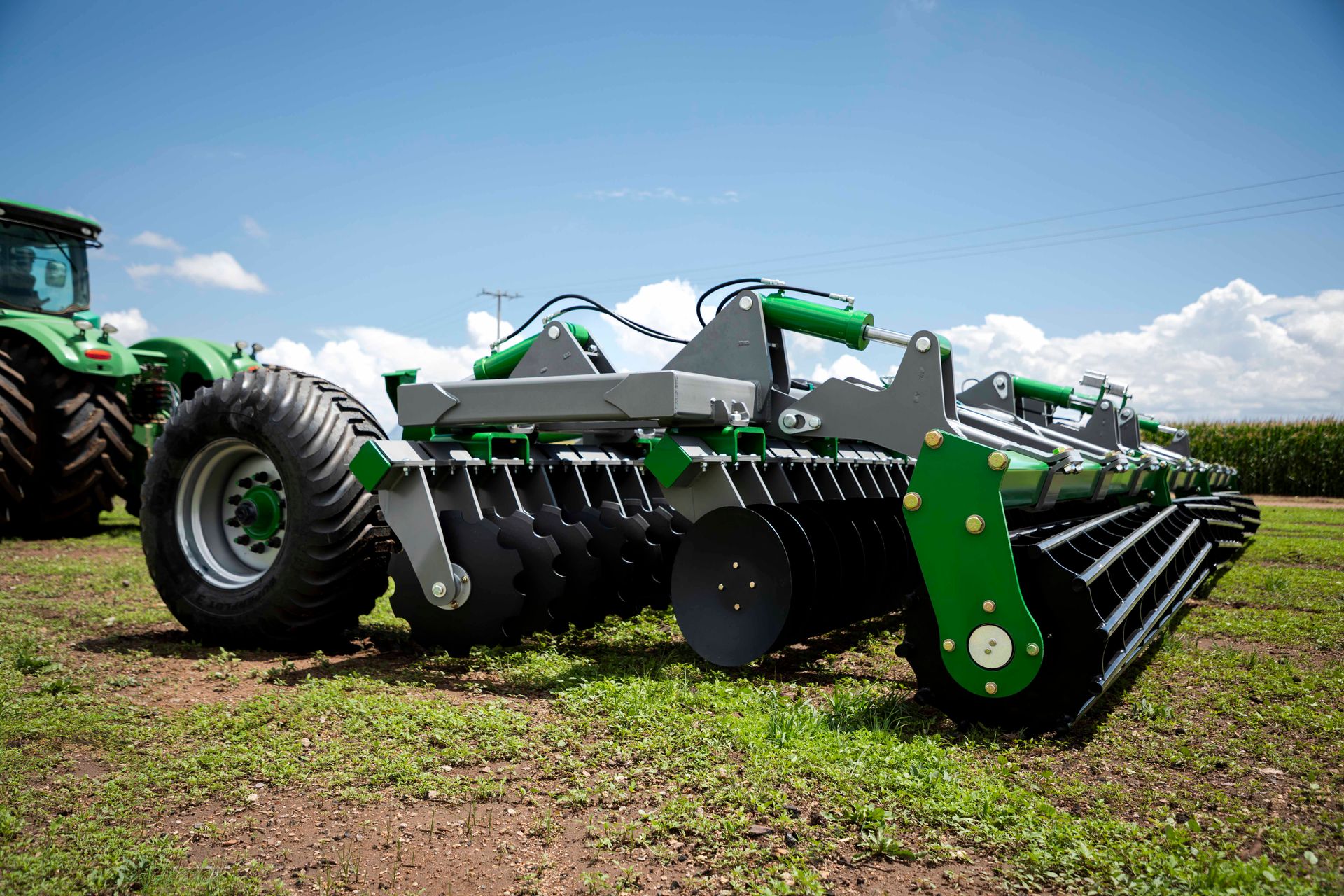

APEX Hyperdisc T Series T38 with a John Deere tractor, three-quarter view
APEX Hyperdisc T series unfolded in a field next to standing corn

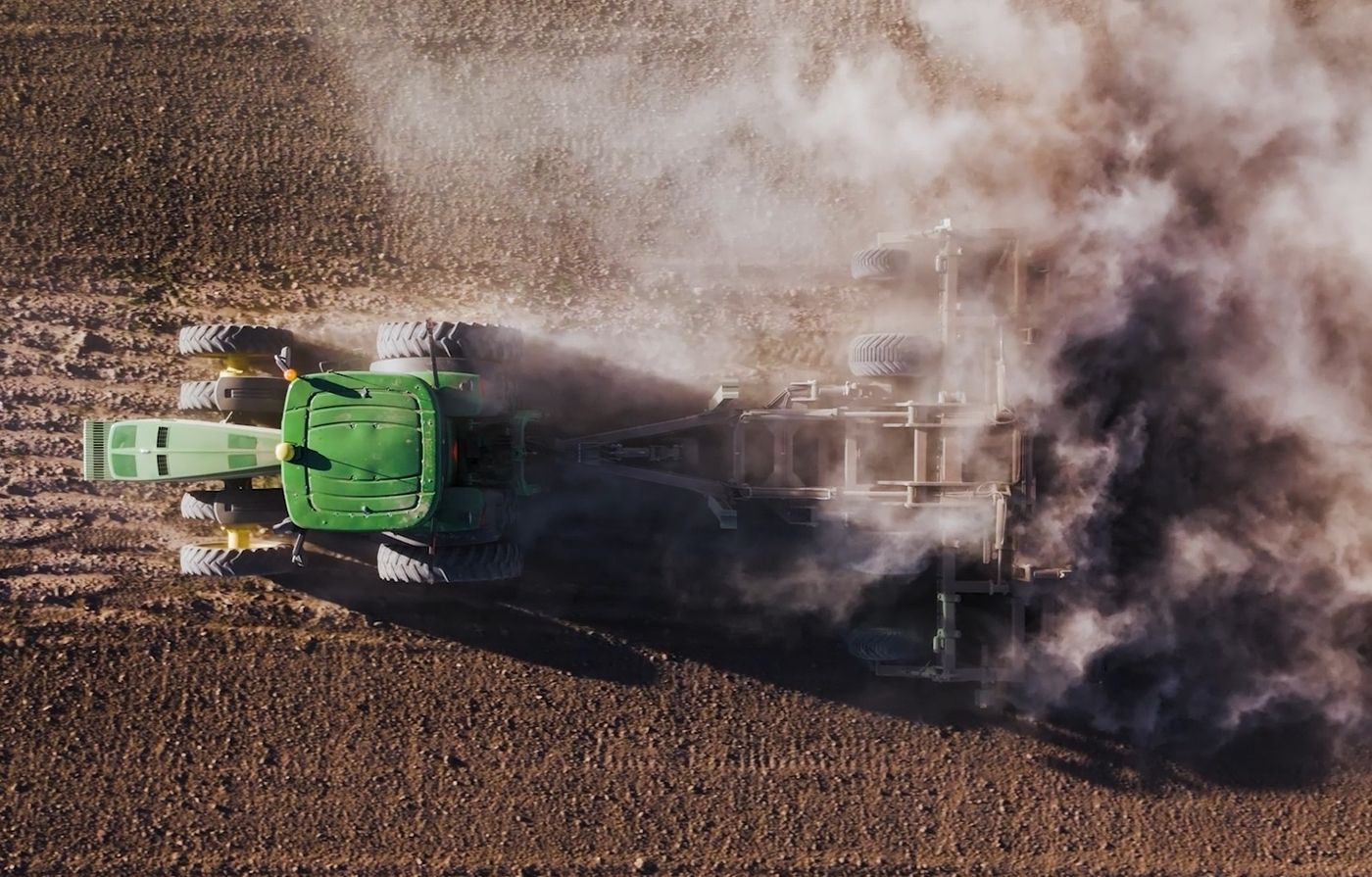

APEX Hyperdisc T Series working a field with a dust plume
ModelWorking widthHPAc/hr @ 12 mphDiscs22 in disc upgradeOttico LSTXSpring packerPriceBuild
T2626 ft 8 in390 to 4503762$1,936$12,127$9,562$148,596Build
T3231 ft 8 in450 to 5204474$2,321$14,925$11,754$163,329Build
T3435 ft480 to 6204882$2,484$15,858$12,488$165,848Build
T3838 ft 4 in530 to 6205390$2,706$17,724$13,958$170,885Build
T4241 ft 8 in580 to 7105898$2,974$19,589$15,427$181,337Build

Swipe the table sideways to see all columns.

BUILT BY APEX

What is under the frame

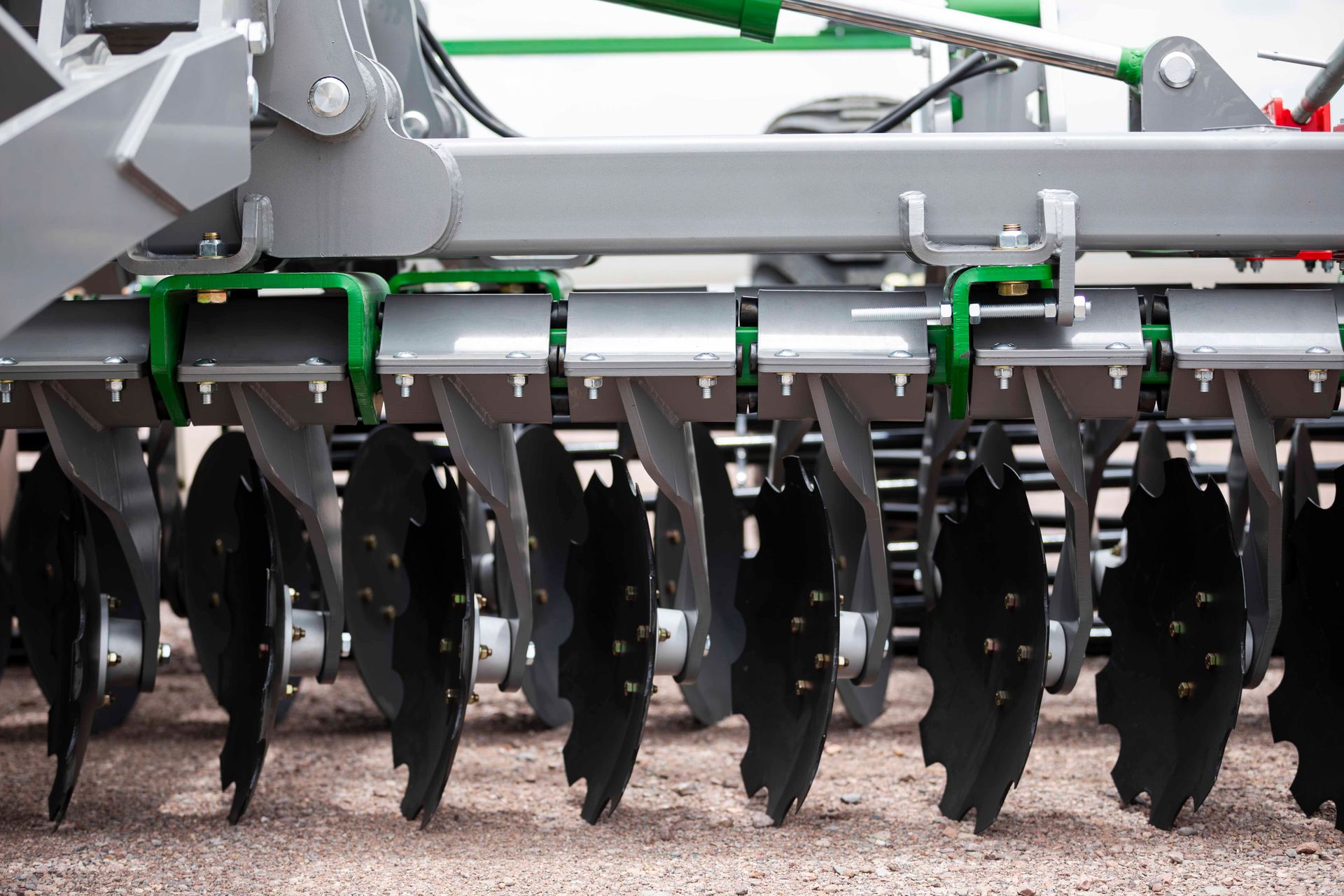

  • Row of independently mounted disc arms on an APEX Hyperdisc

    Independent disc arms

    Each disc arm is independently mounted in 3/4 in G50 steel for ground following and trash flow.

  • Stacked APEX Hyperdisc disc arms on rubber suspension mounts

    Rubber arm suspension

    Rubber disc arm suspension with up to 11 in of vertical travel.

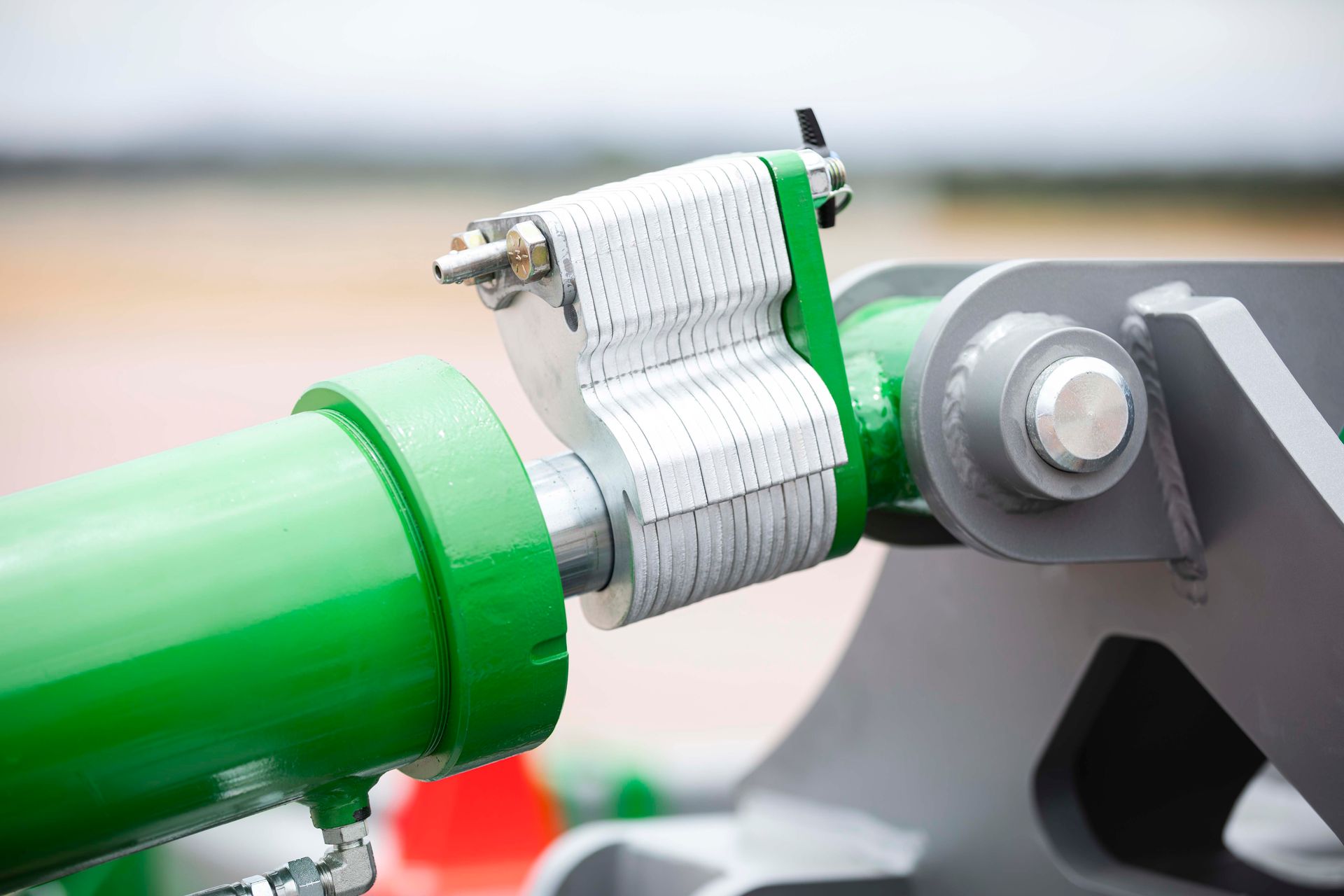

  • Maintenance-free depth stop spacers on an APEX Hyperdisc hydraulic cylinder

    Tool-free depth stops

    Maintenance-free depth stops adjustable in 1/2 in increments.

  • Pivot pin and hinge on an APEX Hyperdisc hydraulic cylinder

    Greaseless technology

    Sealed self-lubricating bushings at all pins and hinges.

  • Sealed disc hub and bearing housing on an APEX Hyperdisc

    SKF sealed bearings

    Maintenance-free sealed disc bearings with triple-lipped cassette seals.

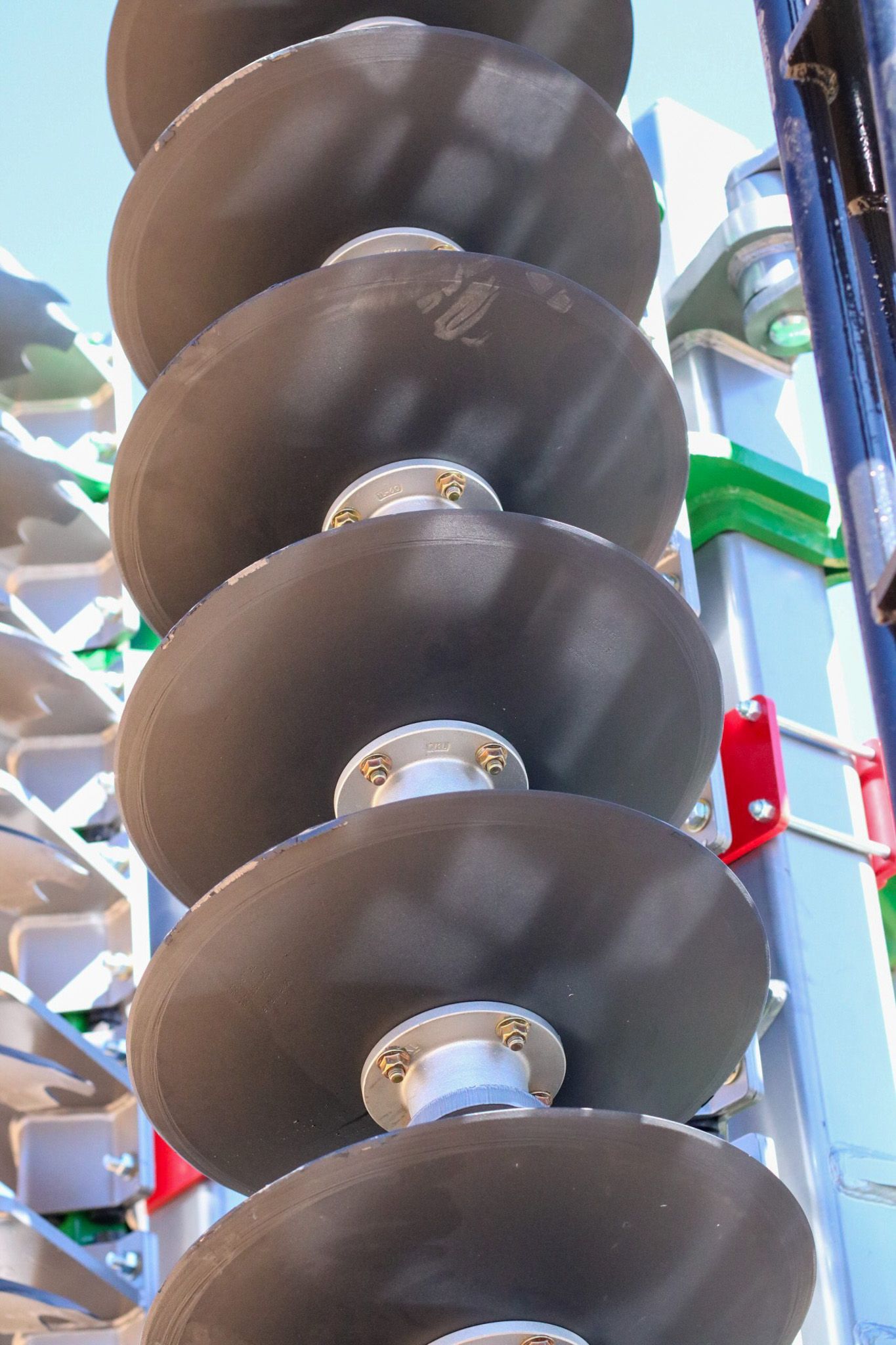

  • Close-up of an APEX Hyperdisc boron steel disc blade and hub

    Boron steel blades

    Transitional hardness profile, in smooth or notched.

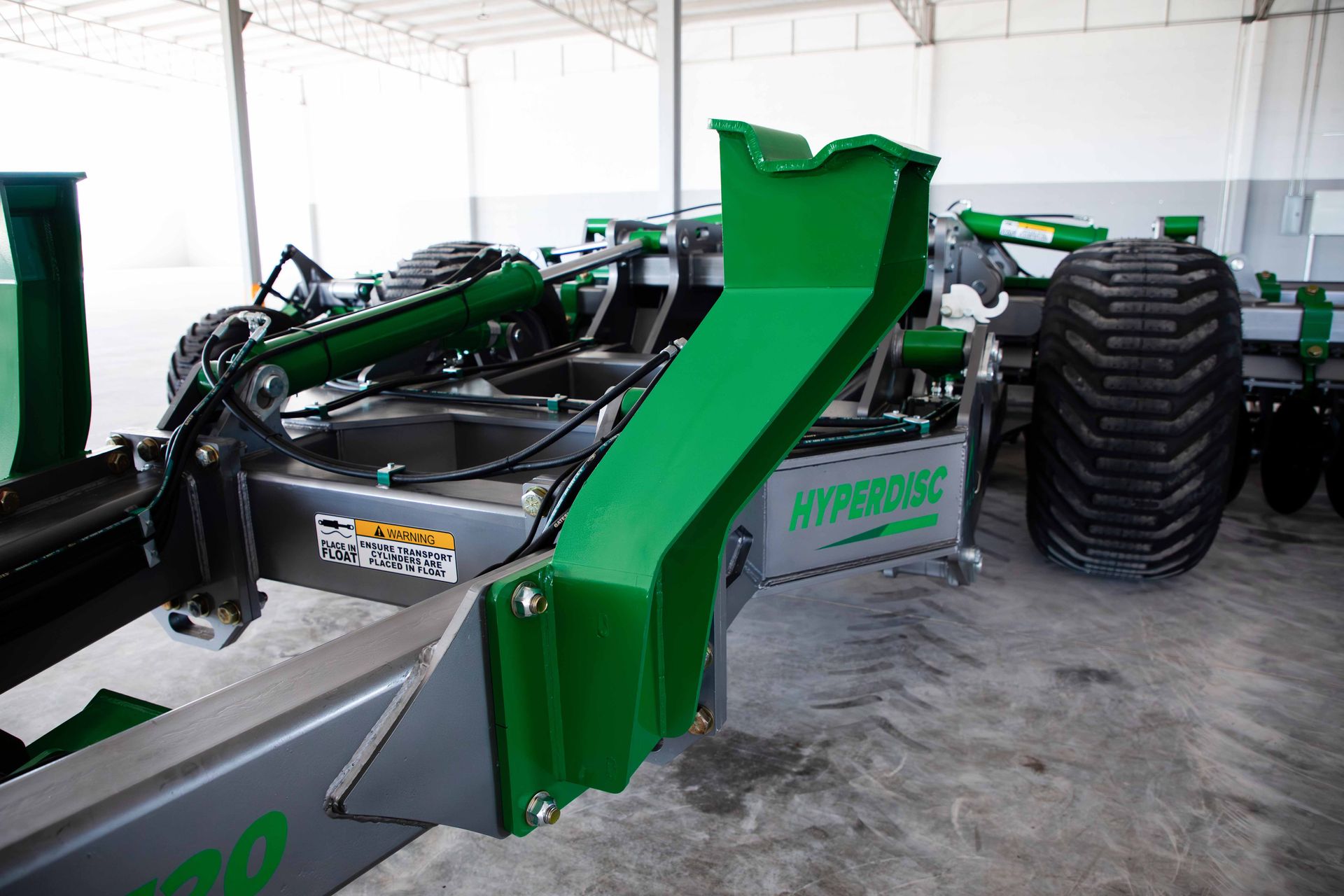

  • APEX Hyperdisc high-tensile steel wing support and frame detail

    High-tensile steel

    Premium high-tensile steel construction throughout.

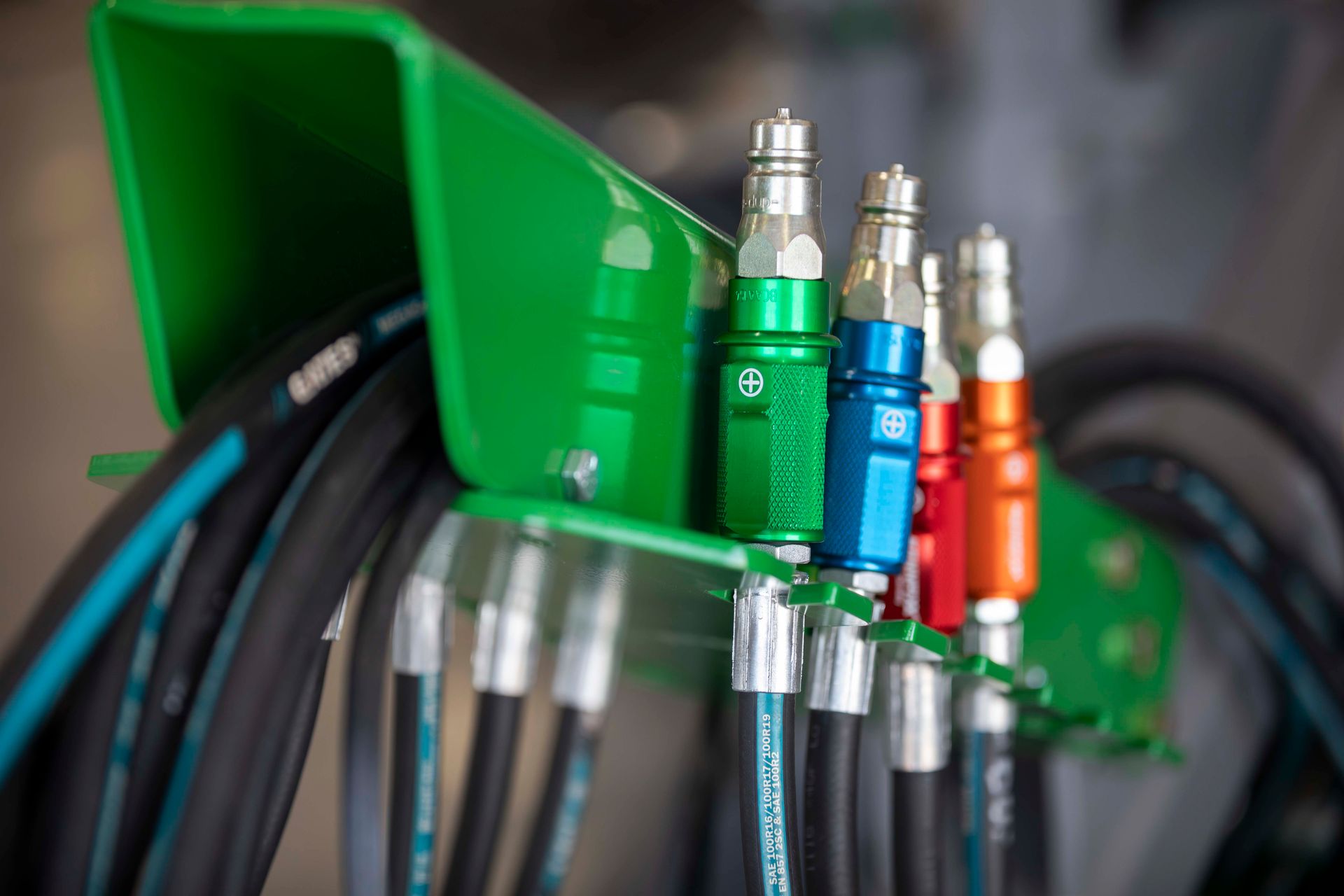

  • Color-coded hydraulic couplers and hoses on an APEX Hyperdisc

    Color-coded couplers

    Hydraulic couplers are color coded for quick, correct hookup.

WITH EVERY ORDER

$5,000 spare parts package

Included on the H, H+ and T series. $2,500 on the C series.

Every Hyperdisc ships with the wear parts you are most likely to need, so a worn hub or blade does not stop you mid-season.

  • 10SKF disc hubs
  • 10Disc blades
  • 5Front disc arms
  • 5Rear disc arms
  • 20Rubber mounts
  • 3Rear roller bearings and shafts
  • 1Hydraulic relief valve kit
  • 4Maintenance-free pin, bushing and seal kits

FINISHING OPTIONS

Rollers for the finish you need

Every Hyperdisc comes with a cage roller, 12 bar or 9 bar, your choice at no extra cost. A double cage roller is a paid upgrade on C, H+ and T series. The Ottico LSTX roller is a paid option on H+ and T series, and the spring packer on H, H+ and T series.

APEX 12 bar cage roller

12 bar cage roller

1.5 in solid steel rods for aggressive clod breaking in dry conditions.

Included

No extra cost. Choose one.

APEX 9 bar cage roller

9 bar cage roller

Wider bar spacing, suited to sandier soils where wind erosion is a concern.

Included

No extra cost. Choose one.

APEX Hyperdisc bi-fold with double cage rollers, hitched to a tractor in a farmyard

Double cage roller

Two cage rollers in tandem for a finer finish and extra clod breaking. Paid upgrade on C, H+ and T series.

C10
$4,408
C12
$5,294
C14
$6,169
C16
$7,230
H20+
$8,815
H24+
$10,578
T26
$11,474
T32
$14,104
T34
$14,986
T38
$16,749
T42
$18,512
Ottico LSTX rubber furrow roller

Ottico LSTX rubber furrow roller

Rubber furrow roller for consolidation and a level finish.

H20+
$9,328
H24+
$11,194
T26
$12,127
T32
$14,925
T34
$15,858
T38
$17,724
T42
$19,589

Spring packer roller

Spring packer for firming and leveling behind the discs.

H20
$7,346
H24
$8,815
H20+
$7,346
H24+
$8,815
T26
$9,562
T32
$11,754
T34
$12,488
T38
$13,958
T42
$15,427
Welder building an APEX Hyperdisc frame in the factory

BUILT BY APEX

Built to order

Every Hyperdisc is built to order by APEX. Typical lead time is 8 to 10 weeks from order. Tell us the model and options you want and we will quote it delivered to your farm.

Request a quote

REQUEST A QUOTE

Get a delivered quote

Tell us about your operation and we will come back with a quote including freight to your farm.

Or call 515-373-1202

FAQ

Straight answers

What is high-speed tillage and how is it different from a conventional disc?

+

A high-speed disc like the Hyperdisc runs at 8 to 12 mph, compared with 4 to 5 mph for a conventional disc. Two rows of individually mounted discs, set at 14 degrees front and 17 degrees rear, turn and shred residue, break clods and level ruts in one pass, leaving a seedbed behind it.

How fast does it actually run?

+

The working range is 8 to 12 mph. Our acres per hour figures are quoted at 12 mph, from 12 acres per hour on the C10 to 58 acres per hour on the T42. Real output depends on field shape, conditions and how fast you can safely run.

What size tractor do I need?

+

It depends on the model. The C series needs 120 to 280 HP on a three-point hitch. The H and H+ series need 280 to 400 HP. The T series needs 390 to 710 HP. Each model's range is in the tables above. Pick within the range for your soil: heavier ground and the top of the speed range need more power.

What is the difference between the H and H+ series?

+

They share the same widths, disc count and horsepower requirements. The H+ adds enhanced adjustability and three sections of overlapping rollers for better leveling and finishing, and it can take the Ottico LSTX rubber furrow roller option. Both can take the spring packer roller. The H+ costs more.

What depth can it work?

+

With 20 inch discs, 2 to 6 inches. With 22 inch discs, 2 to 8 inches. Depth stops adjust in half inch increments without tools.

Smooth or notched blades?

+

Both are boron steel with a transitional hardness profile. Notched blades bite and cut heavy residue more aggressively. Smooth blades suit lighter residue and leave a cleaner finish. If you are unsure, tell us your crop and residue and we will talk it through.

20 inch or 22 inch discs?

+

20 inch discs are standard and work 2 to 6 inches deep. The 22 inch upgrade extends working depth to 8 inches and gives more blade life to wear through. The upgrade is priced per model, from $811 on the C10 to $2,974 on the T42.

What comes with the machine?

+

Every order comes with a $5,000 spare parts package: 10 SKF disc hubs, 10 disc blades, 5 front disc arms, 5 rear disc arms, 20 rubber mounts, 3 rear roller bearings and shafts, 1 hydraulic relief valve kit, 4 maintenance-free pin, bushing and seal kits. It is included at no charge on the H, H+ and T series, and $2,500 on the C series. You also get a free choice of 12 bar or 9 bar cage roller.

Do you ship to my state?

+

Yes. We ship nationwide across the United States. Enter your ZIP in the builder for estimated freight to your farm, and we confirm it with your quote. H, H+ and T series orders placed by December 31 ship free.

Do you offer financing?

+

Yes, through Northland Capital. 4 to 7 annual payments, with your first payment up to 12 months out. Pay it off before the first payment and there's no interest.

See financing

Who fixes it if something breaks?

+

Your Hyperdisc carries the APEX 2 year limited warranty. Call or text us with photos and the serial number. If APEX approves the claim, they ship the parts to you, and in the first year they pay a local shop of your choice for the approved repair. You don't haul it back to us. Getting it to the local shop is on you.
