APEX HYPERDISC · BI-FOLD PULL-TYPE
Hyperdisc H24+

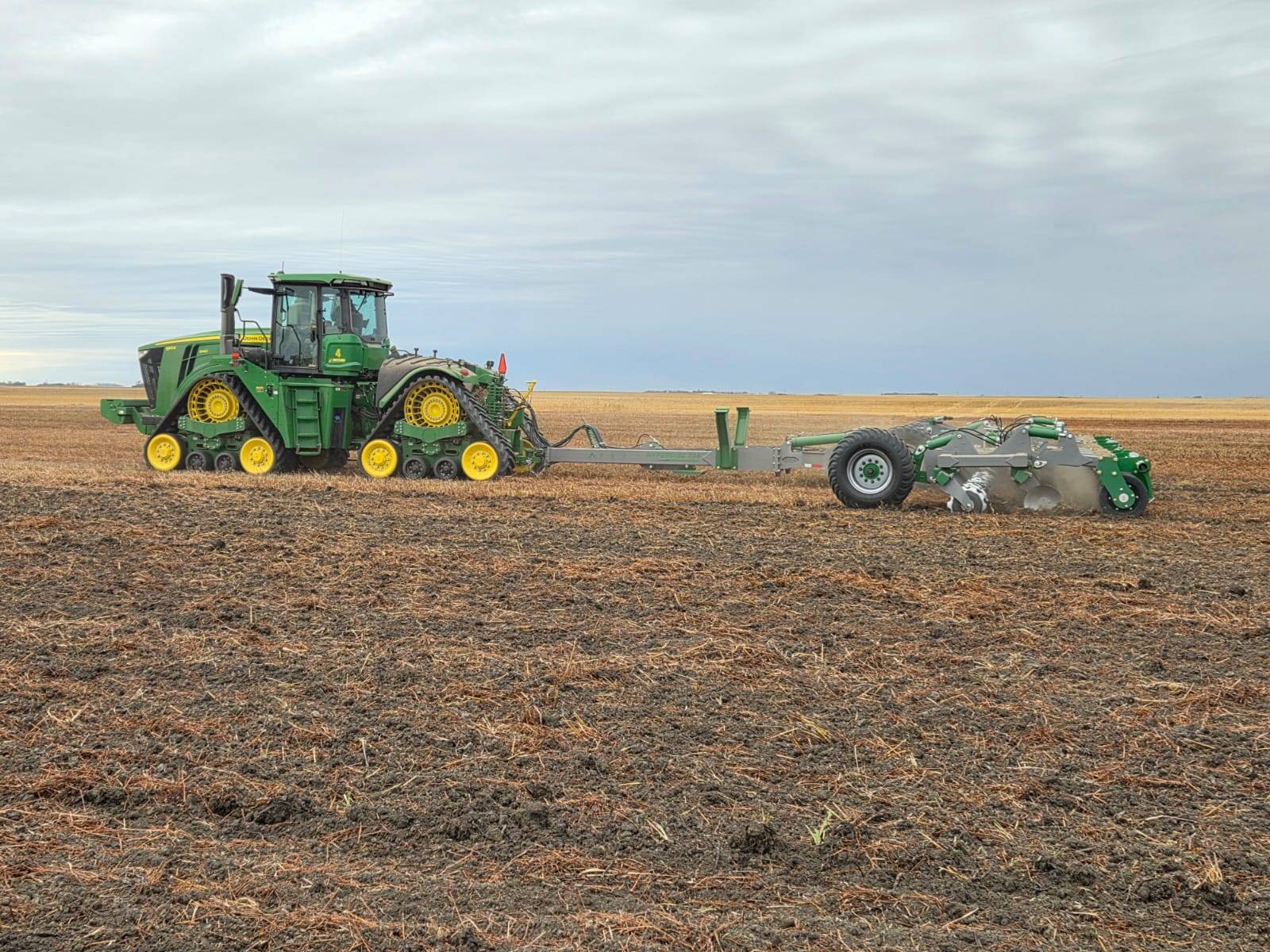

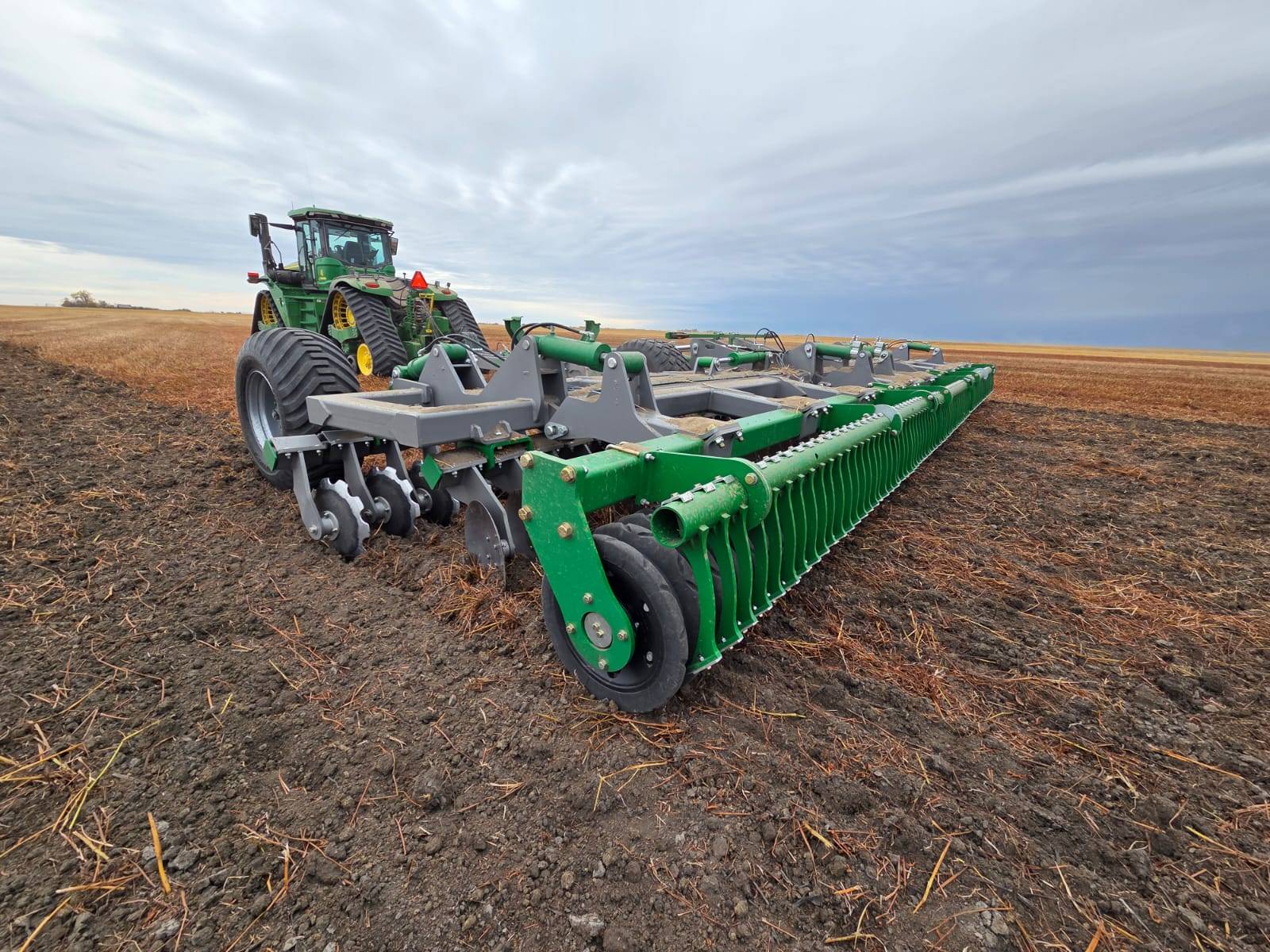

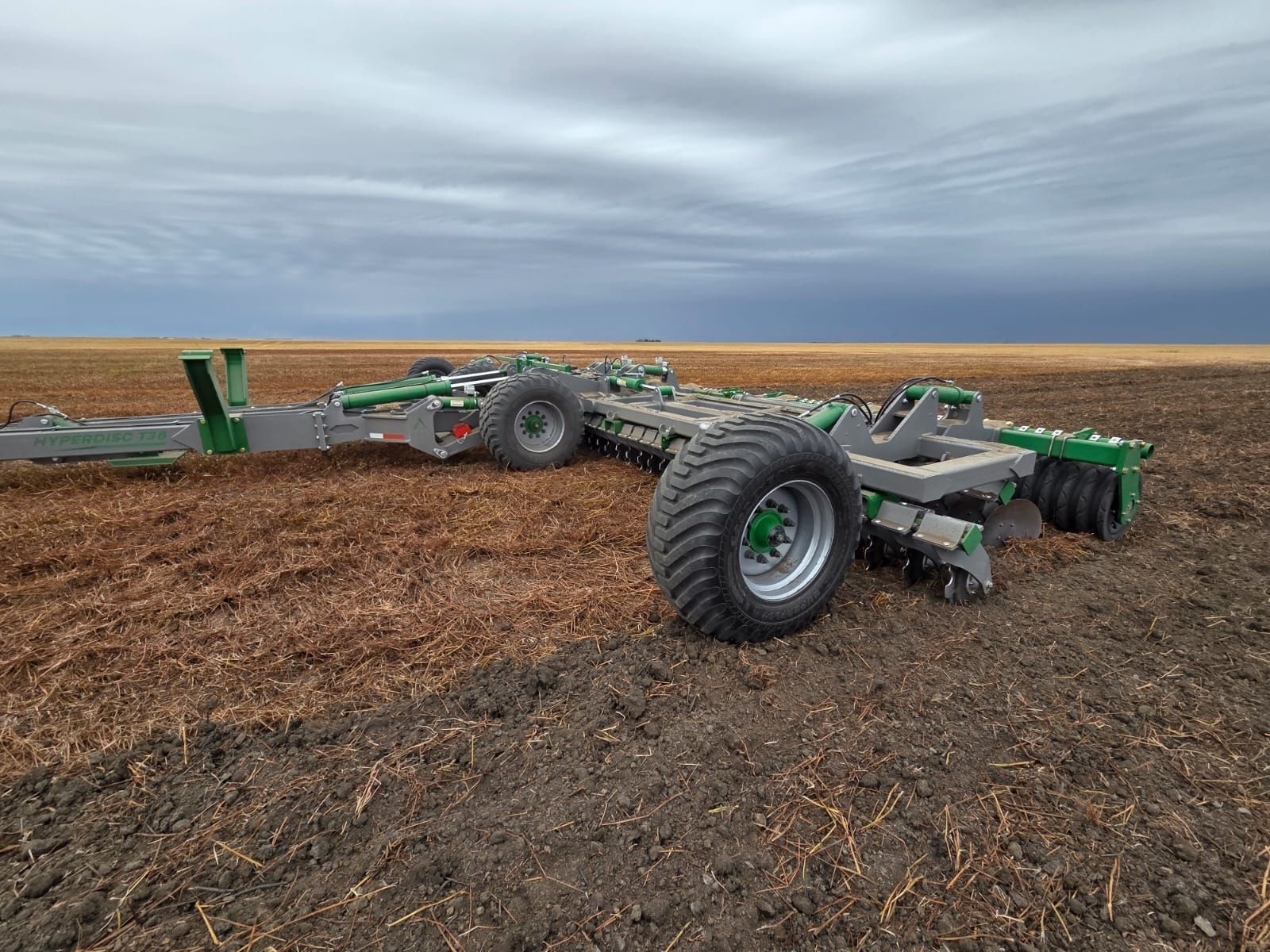

23 ft 4 in bi-fold Hyperdisc for 340 to 400 HP tractors, with three sections of overlapping rollers behind the discs. 34 acres an hour at 12 mph.
Specifications
- Working width
- 23 ft 4 in
- Horsepower
- 340 to 400 HP
- Output at 12 mph
- 34 ac/hr
- Discs
- 54
- Transport tires
- 500/60 R 22.5
- Gauge wheel tires
- 400/60 R 15.5
- Rollers
- 3 overlapping sections
- Disc diameter
- 20 in or 22 in
- Front disc angle
- 14°
- Rear disc angle
- 17°
- Disc spacing
- 5 in
- Disc mounting
- 1 5/8 in rubber torsion rod
- Disc hubs
- Maintenance-free
- Working depth, 20 in
- 2 to 6 in
- Working depth, 22 in
- 2 to 8 in
Options for the H24+
12 bar or 9 bar cage roller included. Your choice.
- 22 in disc upgrade+ $1,632
- Double cage roller+ $9,616
- Ottico LSTX roller+ $10,176
- Spring packer roller+ $8,014
INCLUDED WITH EVERY ORDER
$5,000 spare parts package
- 10SKF disc hubs
- 10Disc blades
- 5Front disc arms
- 5Rear disc arms
- 20Rubber mounts
- 3Rear roller bearings and shafts
- 1Hydraulic relief valve kit
- 4Maintenance-free pin, bushing and seal kits
Built to order by APEX. Typical lead time is 6 to 8 weeks. Request a quote
